MySQL 是最广泛使用的开源关系型数据库，以高性能、高可靠性著称。本文介绍在 CentOS 7 上安装 MySQL 5.7、配置数据目录与主从复制参数，以及完成初始化和主从搭建的操作步骤。

CentOS7安装MySql

下载安装包(mysql 5.7+)

wget -i -c http://dev.mysql.com/get/mysql57-community-release-el7-10.noarch.rpm

运行安装包

yum -y install mysql57-community-release-el7-10.noarch.rpm

安装数据库

yum -y install mysql-community-server

创建目录文件

vim /etc/my.cnf
datadir=/data/mysqld/data
socket=/data/mysqld/data/mysql.sock
symbolic-links=0
log-error=/data/mysqld/logs/mysqld.log
pid-file=/data/mysqld/mysqld.pid
port=3306
server_id=225                             #服务器ID
log-bin=mysql-bin                         #二进制日志文件名
log-slave-updates=true                    #添加，允许从服务器更新二进制日志
binlog_format = row                       #强烈建议，其他格式可能造成数据不一致
max_binlog_size = 100M

[mysql]
socket=/data/mysqld/data/mysql.sock


mkdir -p /data/mysqld/{data,logs}
chown mysql:mysql /data/mysqld/ -R

启动服务

systemctl start mysqld.service && systemctl enable mysqld.service systemctl status mysqld.service

使用默认密码进入数据库

grep “password” /var/log/mysqld.log mysql -uroot -p

修改密码，注意密码复杂度要求

ALTER USER ‘root’@’localhost’ IDENTIFIED BY ‘V3QM$FhKuSqcP@Xk<H+U8wIC_m1T?vn>’;

授权远程访问

grant all privileges on . to ‘root’@’%’ identified by ‘V3QM$FhKuSqcP@Xk<H+U8wIC_m1T?vn>’ with grant option;

创建用户

create user 'slave1'@'%' identified by 'QNm*6A<.Cu$:M8Plxq%dv^B]IcW;@sig';

create user 'slave2'@'%' identified by 'QNm*6A<.Cu$:M8Plxq%dv^B]IcW;@sig';

刷新权限

flush privileges;

MySQL默认源在国外，如果在国内连接的话，可能会特别慢，这个时候可以去官网下载别人打包好的tar包，解压安装即可

wget https://cdn.mysql.com//Downloads/MySQL-5.7/mysql-5.7.34-1.el7.x86_64.rpm-bundle.tar tar xvf mysql-5.7.34-1.el7.x86_64.rpm-bundle.tar yum -y install ./mysql-community-* systemctl start mysqld.service

MySQL密码重置

# 修改配置文件
[root@localhost ~]# vim /etc/my.cnf
[mysqld]
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
symbolic-links=0
log-error=/var/log/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid
skip-grant-tables	# 配置文件添加此行


#重启mysql服务
[root@localhost ~]# systemctl restart mysqld

# 用户登录
mysql -uroot -p # (直接点击回车，密码为空)

# 修改密码
mysql> use mysql;
mysql> update user set authentication_string=password('V3QM$FhKuSqcP@Xk<H+U8wIC_m1T?vn>') where user='root';
Query OK, 1 row affected, 1 warning (0.00 sec)
Rows matched: 1  Changed: 1  Warnings: 1

mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)


# 删除配置文件中刚才添加的一行，并重启数据库，使用新密码进去
# 重新进入后，会提示让重置密码
mysql> show databases;
ERROR 1820 (HY000): You must reset your password using ALTER USER statement before executing this statement.

# 使用alter user语句重置密码即可
mysql> ALTER USER 'root'@'localhost' IDENTIFIED BY 'V3QM$FhKuSqcP@Xk<H+U8wIC_m1T?vn>';
Query OK, 0 rows affected (0.00 sec)

mysql> grant all privileges on *.* to 'root'@'%' identified by 'V3QM$FhKuSqcP@Xk<H+U8wIC_m1T?vn>' with grant option;
Query OK, 0 rows affected, 1 warning (0.00 sec)

mysql> flush privileges;
Query OK, 0 rows affected (0.00 sec)

MySQL主动复制

搭建并测试一主两从的主从复制环境，提高数据库的可用性和容错性

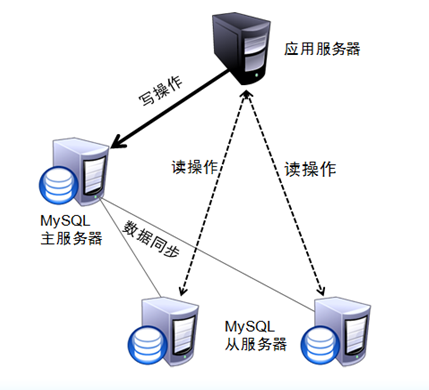

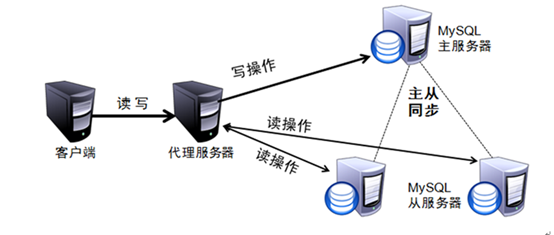

拓扑示例

image-20210902112612921

image-20210902105050670

环境准备

系统类型IP地址主机名所需软件硬件
Centos 7.9.200943.249.28.50server1boost_1_59_0.tar.gz mysql-5.7.352H4G
Centos 7.9.2009106.13.208.193server2boost_1_59_0.tar.gz mysql-5.7.352H4G
Centos 7.9.2009208.90.122.143server3boost_1_59_0.tar.gz mysql-5.7.354H8G
Centos 7.9.2009192.168.100.104am.linuxfan.cnjdk-6u14-linux-x64.bin amoeba-mysql-binary-2.2.0.tar.gz内存：512M CPU核心：1
Centos 7.4 1708 64bit192.168.80.138lamp.linuxfan.cn内存：512M CPU核心：1

MySQL配置文件

[root@www ~]# vim /etc/my.cnf

[mysqld]

datadir=/data/mysql/data
socket=/data/mysql/data/mysql.sock
symbolic-links=0
log-error=/data/mysql/logs/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid
port=3306
server_id=193                             #服务器ID
log-bin=mysql-bin                         #二进制日志文件名
log-slave-updates=true                    #添加，允许从服务器更新二进制日志
binlog_format = row                       #强烈建议，其他格式可能造成数据不一致
max_binlog_size = 100M
log-slave-updates = 1                     #是否记录从服务器同步数据动作
gtid-mode = on                            #启用gitd功能
enforce-gtid-consistency = 1              #开启强制GTID一致性
master-info-repository = TABLE            #记录IO线程读取已经读取到的master binlog位置，用于slave宕机后IO线程根据文件中的POS点重新拉取binlog日志
relay-log-info-repository = TABLE         #记录SQL线程读取Master binlog的位置，用于Slave 宕机后根据文件中记录的pos点恢复Sql线程
sync-master-info = 1                      #启用确保无信息丢失；任何一个事务提交后, 将二进制日志的文件名及事件位置记录到文件中
slave-parallel-workers = 8                #设定从服务器的复制线程数；0表示关闭多线程复制功能
binlog-checksum = CRC32                   #设置binlog校验算法（循环冗余校验码）
master-verify-checksum = 1                #设置主服务器是否校验
slave-sql-verify-checksum = 1             #设置从服务器是否校验
binlog-rows-query-log_events = 1          #用于在二进制日志记录事件相关的信息，可降低故障排除的复杂度
sync_binlog = 1                           #保证master crash safe，该参数必须设置为1
innodb_flush_log_at_trx_commit = 1        #保证master crash safe，该参数必须设置为1


[mysql]
default-character-set=utf8
socket=/data/mysql/data/mysql.sock

根据配置文件，创建相对应的目录

mkdir -p /data/mysqld/{data,logs}
chown mysql:mysql /data/mysqld/ -R

mysql> GRANT REPLICATION SLAVE ON *.* TO 'slave'@'%' IDENTIFIED BY 'QNm*6A<.Cu$:M8Plxq%dv^B]IcW;@sig';
Query OK, 0 rows affected, 1 warning (0.03 sec)

mysql> flush privileges;
Query OK, 0 rows affected (0.02 sec)

mysql> show master status;
+------------------+----------+--------------+------------------+------------------------------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set                        |
+------------------+----------+--------------+------------------+------------------------------------------+
| mysql-bin.000003 |     1284 |              |                  | fbdb27e6-1b68-11ec-884e-faad9d5a0000:1-5 |
+------------------+----------+--------------+------------------+------------------------------------------+
1 row in set (0.00 sec)
change master to master_host='192.168.10.241',master_port=3306,master_user='slave',master_password='QNm*6A<.Cu$:M8Plxq%dv^B]IcW;@sig',master_log_file='mysql-bin.000003',master_log_pos=1284;

change master to master_host='43.249.28.50',master_port=3306,master_user='slave2',master_password='QNm*6A<.Cu$:M8Plxq%dv^B]IcW;@sig',master_log_file='mysql-bin.000005',master_log_pos=66813;

客户端配置master同步

mysql> show variables like 'server_id';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| server_id     | 242   |
+---------------+-------+
1 row in set (0.01 sec)

mysql> change master to master_host='192.168.10.241',master_port=3306,master_user='slave',master_password='QNm*6A<.Cu$:M8Plxq%dv^B]IcW;@sig',master_log_file='mysql-bin.000003',master_log_pos=1284;

Query OK, 0 rows affected, 2 warnings (0.18 sec)

mysql> start slave;
Query OK, 0 rows affected (0.21 sec)

查看客户端集群状态

mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.10.241
                  Master_User: slave
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: mysql-bin.000003
          Read_Master_Log_Pos: 1284
               Relay_Log_File: master2-relay-bin.000002
                Relay_Log_Pos: 320
        Relay_Master_Log_File: mysql-bin.000003
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes
              Replicate_Do_DB:
          Replicate_Ignore_DB:
           Replicate_Do_Table:
       Replicate_Ignore_Table:
      Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
                   Last_Errno: 0
                   Last_Error:
                 Skip_Counter: 0
          Exec_Master_Log_Pos: 1284
              Relay_Log_Space: 529
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
                Last_IO_Errno: 0
                Last_IO_Error:
               Last_SQL_Errno: 0
               Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
             Master_Server_Id: 241
                  Master_UUID: fbdb27e6-1b68-11ec-884e-faad9d5a0000
             Master_Info_File: mysql.slave_master_info
                    SQL_Delay: 0
          SQL_Remaining_Delay: NULL
      Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
           Master_Retry_Count: 86400
                  Master_Bind:
      Last_IO_Error_Timestamp:
     Last_SQL_Error_Timestamp:
               Master_SSL_Crl:
           Master_SSL_Crlpath:
           Retrieved_Gtid_Set:
            Executed_Gtid_Set: fe0417de-1b74-11ec-b459-fa87939ee000:1-3
                Auto_Position: 0
         Replicate_Rewrite_DB:
                 Channel_Name:
           Master_TLS_Version:
1 row in set (0.00 sec)

验证集群同步状态是否正常

# ster节点创建数据库

mysql> create database cloud;
Query OK, 1 row affected (0.03 sec)

# ave节点查看数据库是否同步
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| cloud              |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
5 rows in set (0.00 sec)

基于二进制日志的主从复制

[root@master ~]# vi /etc/my.cnf
[mysqld]
datadir=/data/mysql/data
socket=/data/mysql/data/mysql.sock
symbolic-links=0
log-error=/data/mysql/logs/mysqld.log
pid-file=/var/run/mysqld/mysqld.pid
port=3306
server_id=193                               # 服务器ID
log-bin=mysql-bin                           # 二进制日志文件名
log-slave-updates							# 指定开启slave角色的更新
binlog-ignore-db=mysql				# 复制过滤：也就是指定哪个数据库不用同步（mysql库一般不同步）
binlog_cache_size=1M				# 为每个session 分配的内存，在事务过程中用来存储二进制日志的缓存
binlog_format=mixed		# 主从复制的格式（mixed,statement,row，默认格式是statement）
expire_logs_days=7		# 二进制日志自动删除/过期的天数。默认值为0，表示不自动删除。
innodb_flush_log_at_trx_commit=2
master_info_repository=table
relay_log_info_repository=TABLE
slave_skip_errors=1062		# 跳过主从复制中遇到的所有错误或指定类型的错误


[root@slave ~]# vi /etc/my.cnf
relay-log=relay1-log-bin
relay-log-index=slave-relay1-bin.index
server-id=2
innodb_flush_log_at_trx_commit=2
slave-parallel-type=LOGICAL_CLOCK
slave_parallel_workers=16
master_info_repository=table
relay_log_info_repository=TABLE

基于GTID方式的主从复制

[root@master ~]# vim /etc/my.cnf
log-bin=mysql-bin
log-slave-updates
server-id=1
innodb_flush_log_at_trx_commit=2
master_info_repository=table
relay_log_info_repository=TABLE
binlog-format=ROW
gtid-mode=ON
enforce-gtid-consistency=true
binlog_cache_size = 4M
max_binlog_size = 1G
max_binlog_cache_size = 2G
skip-name-resolve


[root@slave ~]# vim /etc/my.cnf							##末尾添加
relay-log=relay1-log-bin
relay-log-index=slave-relay1-bin.index
server-id=2
innodb_flush_log_at_trx_commit=2
slave-parallel-type=LOGICAL_CLOCK
slave_parallel_workers=16
master_info_repository=table
relay_log_info_repository=TABLE
binlog-format=ROW
binlog-row-image = minimal
log-bin=slave1-bin
log-bin-index=slave1-log-bin.index
gtid-mode=ON
enforce-gtid-consistency=true
binlog_cache_size = 4M
max_binlog_size = 1G
max_binlog_cache_size = 2G
slave-sql-verify-checksum=1
binlog-rows-query-log_events=1
log-slave-updates
relay_log_purge = 1
relay_log_recovery = 1
skip-name-resolve

MySQL读写分离
